How to Create a Fishbone Diagram for Root Cause Analysis

How to Create a Fishbone Diagram for Root Cause Analysis
July 15, 2024
Lean Manufacturing
Compliance

Identifying the root causes of issues is crucial for continuous improvement in the business environment. A fishbone diagram, also known as an Ishikawa or root cause analysis diagram, provides a systematic approach to pinpointing problems in processes. This powerful tool is essential in quality and process improvement efforts, helping teams visually break down problem causes for deeper understanding and solution-oriented discussions.

This article covers the essentials of crafting an effective fishbone diagram for root cause analysis, including its benefits, the main steps for creation, and its common applications. We’ll share best practices, advanced tools, and techniques for insightful analyses, illustrating how these diagrams can be pivotal in quality and process improvement strategies.

Overview and Benefits of Fishbone Diagrams

What is a Fishbone Diagram?

A fishbone diagram (Ishikawa diagram or cause-and-effect diagram), was pioneered by Dr. Kaoru Ishikawa, a Japanese quality management expert, in the 1960s. It serves as a visual tool to pinpoint and analyze the root causes of problems, promoting a structured approach to problem-solving. The diagram resembles a fish's skeleton, with a central spine and branches that categorize potential causes of an issue into broad areas such as machines, methods, materials, and manpower, which can be further divided for detailed analysis . This visual method is a key component of the Toyota Production System and lean manufacturing principles.

Advantages in Problem Solving

The use of a fishbone diagram offers numerous advantages in problem-solving. Firstly, it facilitates a comprehensive understanding of the problem by mapping out all contributing factors, which aids in identifying the root causes rather than just addressing symptoms . This tool also enhances collaboration and brainstorming among team members, as it requires input from various departments, promoting a holistic view of the problem . Additionally, it helps in identifying process inefficiencies and bottlenecks, enabling organizations to target their improvement efforts effectively . By utilising continuous improvement and cross-functional cooperation, the fishbone diagram serves as a critical tool in quality defect prevention and process management across diverse industries . It is particularly useful in product design, identifying near-miss incidents, and investigating adverse events to uncover causal relationships and prevent system failure.

Effective Brainstorming Techniques

When employing the fishbone method for root cause fishbone analysis, effective brainstorming is crucial. Teams should engage in a structured team process where each member contributes ideas in rotation, akin to the child's game "Go Fish" . This method ensures a diverse range of perspectives and deepens critical thinking. Utilizing techniques such as the 5-Whys, also known as the five whys technique, within this framework helps in organizing and prioritizing potential causes .

Visualization Tools

For a more streamlined and efficient creation of fishbone diagram templates, various digital tools offer significant advantages. Platforms like Canva Whiteboards provide editable templates and intuitive drag-and-drop interfaces, making it easier to customize diagrams without any design experience . These tools also support real-time collaboration, ensuring all team members can contribute to the diagram simultaneously, which is vital for capturing a comprehensive range of causes and effects.

Examples of Successful Diagrams

Learning from successful examples can significantly improve the effectiveness of a fishbone diagram example. Industries ranging from manufacturing to healthcare have utilized these diagrams to pinpoint root causes and foster continuous improvement . For instance, a fishbone drawing created by a manufacturing team identified multiple causes of iron contamination using the six generic fishbone diagram categories to prompt ideas and ensure thorough analysis . These real-world examples serve as excellent inspiration and confirm the versatility and utility of fishbone rca across various sectors, including service industries.

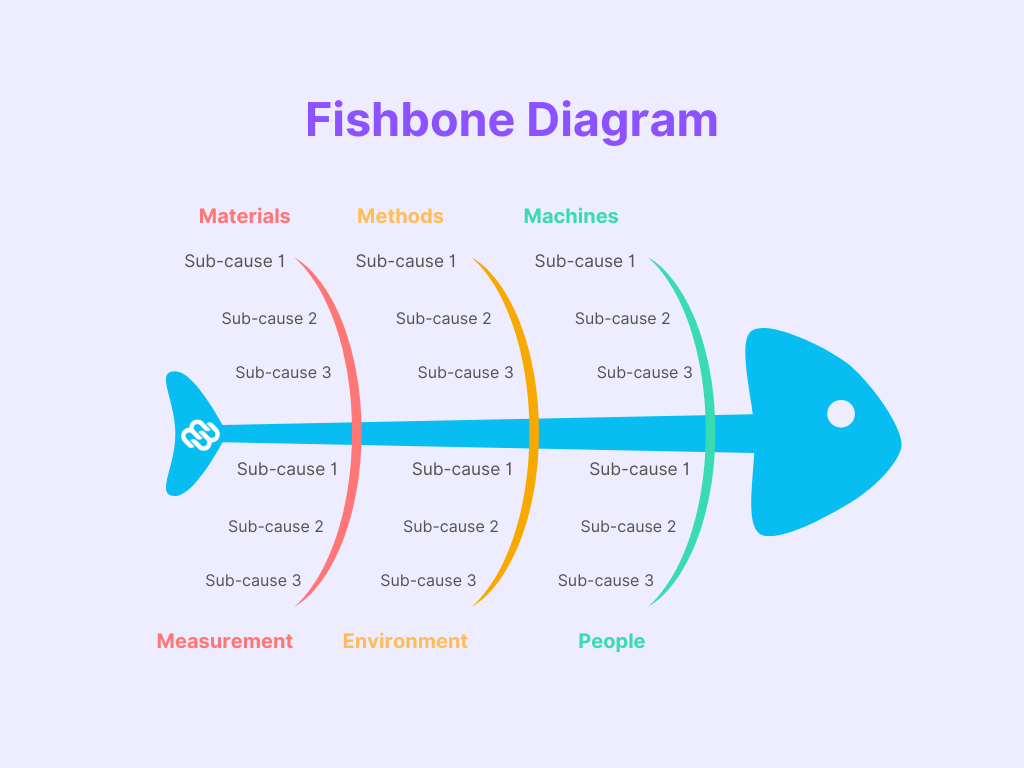

Blue Minimalist Fishbone Diagram Infographic Graph

How to Create a Fishbone Diagram

Step 1: Define the Problem
Begin by agreeing on a clear, concise problem statement. This should address a specific issue your team is facing. Write this problem at the head of the fishbone diagram, often referred to as the effect.

Step 2: Identify Causes
Decide on the major categories for potential causes of the problem. Common categories include methods, machines, people, materials, fishbone diagram measurement, and environment. Each category should branch off from the main spine of the diagram . The 5 Ms model or 8 Ps model can be used as a starting point for identifying high-level causes.

Step 3: Structure the Diagram
For each identified category, brainstorm possible causes and sub-causes. Draw lines from each category and label them accordingly. If a cause is complex, further sub-branch lines can be drawn to delve deeper into the analysis . This helps in identifying variation sources that contribute to the problem.

Step 4: Discuss and Analyze
Engage the team in discussing each cause and its potential impact on the problem. Use tools like the '5 Whys' to explore deeper into the causes and understand their root origins. This step is crucial for a thorough analysis and ensures all possible causes are considered.

Step 5: Refine and Take Action
Review the complete diagram with your team. Develop action items for addressing the root causes. Prioritize these actions based on their potential impact and feasibility. Ensure to capture this session's insights and decisions for implementation.

Quality Management

Common Applications of Fishbone Diagrams

Use in Quality Control

Fishbone diagrams are widely recognized for their effectiveness in quality control settings. They help teams identify the root causes of issues by breaking down problems into smaller, manageable components, often referred to as "bones". This method enhances insight into potential causes and facilitates the development of solutions . As a visual tool, the fishbone diagram organizes the main causes of a problem into categories such as methods, machines, people, materials, measurement, and environment, which can be explored further to pinpoint specific issues .

Use in Process Improvement

In the realm of process improvement, fishbone diagrams serve as a vital tool for uncovering all contributing root causes of a problem. They are particularly useful in situations where teams need to escape routine thinking patterns and explore new angles . By structuring brainstorming sessions around the fishbone diagram, teams can categorize ideas effectively and delve deeper into each cause through continuous questioning, like "Why does this happen?" This systematic approach not only organizes the discussion to stay focused on current issues but also aids in prioritizing further analysis and corrective actions .

Flexible Software Solutions

Mobile2b offers a suite of essentia tools such as fishbone diagrams, pareto charts, key for detailed root cause protocol analysis. The platform allows users to fully customize their diagrams ensuring all potential causes are visually represented without clutter. Start your root cause analysis journey today:

  • Fully Customizable fishbone diagrams

  • Pareto charts

  • Ability to add unlimited lines and text

  • Advanced features for comprehensive analysis

  • Real-time collaboration

  • Interactive templates

  • Intuitive drag-and-drop interface

  • Multi-user access for team collaboration

  • Cloud-based storage for easy access

  • Integration with other project management tools

Conclusion

We have explored the pivotal role of fishbone diagrams in fishbone root cause analysis. From brainstorming techniques to the employment of digital tools, we discussed how these diagrams serve as a central piece in untangling complex problems across various industries. We walked through the steps of creating an effective fishbone diagram, emphasizing the significance of a structured brainstorming session and the advantages of utilizing specific software to enhance team collaboration and insight.

Understanding the applicability, advantages, and advanced tools for crafting fishbone diagrams underscores their value in continuous improvement and problem-solving. By applying these strategies, teams can gain a deeper understanding of underlying issues, with thorough analysis and actionable solutions. Our goal is to equip professionals with the knowledge to create impactful changes in their organizational processes, reinforcing the essential role of fishbone diagrams as an invaluable asset.

FAQs

Q: How do you create a fishbone diagram for root cause analysis?
A: To develop a Fishbone Diagram, follow these steps:

  1. Clearly define the problem you are addressing, also known as the effect.

  2. Identify the main categories of causes and represent these as branches from the central arrow.

  3. Brainstorm all potential causes of the problem.

  4. For each identified cause, ask "Why does this happen?" to delve deeper into the root causes.

Q: What are the five steps to construct a fishbone diagram?
A: The process of creating a fishbone diagram can be broken down into five steps:

  1. Define the problem with a clear and concise statement.

  2. Label the potential issues or categories of causes.

  3. Brainstorm all possible causes for the problem.

  4. Add more detail to your fishbone analysis to enhance understanding.

  5. Review each identified cause and formulate action items to address them.

Q: What do the 5 M's in fishbone analysis represent?
A: The 5 M's used in fishbone analysis are Man, Machine, Materials, Methods, and Fishbone Diagram Measurement. These categories help guide the brainstorming process and identify potential causes of issues.

Q: Is there a template for creating a fishbone diagram in Microsoft Word?
A: Yes, although it might be challenging you can create a fishbone diagram in Microsoft Word by using the Shapes feature. Go to Insert > Illustrations > Shapes in your Word document, and use the shapes and lines from the drop-down menu to construct your diagram.
